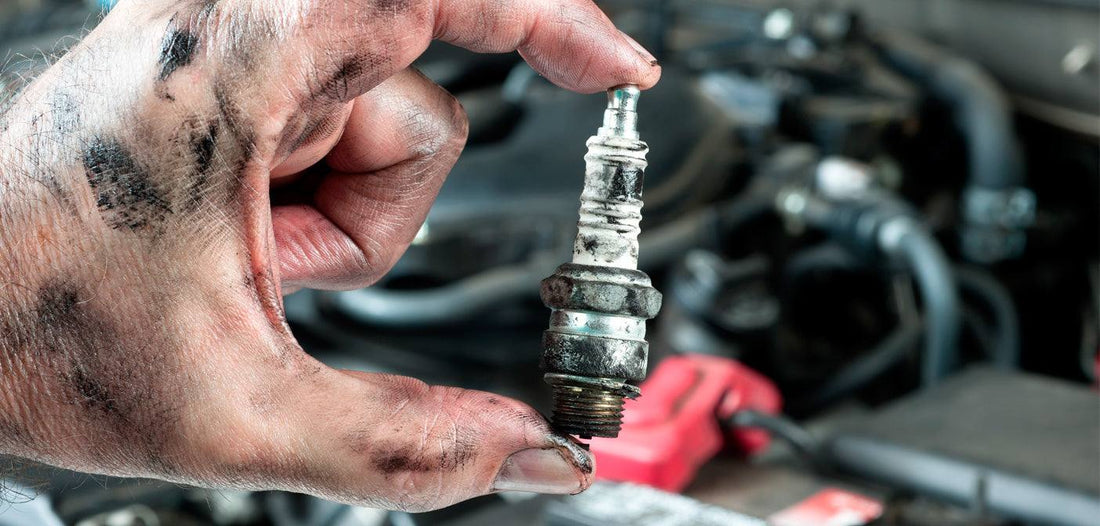

Dirty hand holding a used engine spark plug near ATV or dirt bike engine

Engine Spark Testing - Complete Guide 2026

Q9powersportsusa.com Staff

Engine Spark Testing - Complete Guide 2026

Your powersports vehicle won't start and you suspect ignition problems? Testing for spark is the first diagnostic step that can save you hours of frustration and hundreds in unnecessary repairs. Whether you're troubleshooting an ATV, dirt bike, scooter, or go-kart, knowing how to properly test for spark is an essential skill every owner should master. This comprehensive 2026 guide walks you through the complete process of testing engine spark, from basic checks to advanced diagnostics. Engine spark testing complete guide 2026 Q9 PowerSports USA

Why Test for Spark?

Essential Diagnostic Step

When to Test:

  • Engine won't start
  • Engine cranks but won't fire
  • Intermittent starting issues
  • Engine runs then dies
  • After sitting in storage
  • Troubleshooting no-start condition
  • Before replacing expensive parts

What Spark Testing Reveals:

  • If ignition system working
  • Spark plug condition
  • Ignition coil function
  • CDI/ECU operation
  • Wiring integrity
  • Kill switch issues
  • Narrows down problem

Safety First

Critical Precautions

Safety Requirements:

  • Wear insulated gloves
  • Use safety glasses
  • Work in well-ventilated area
  • Keep away from fuel
  • Don't touch plug wire while cranking
  • Ignition produces high voltage (20,000V+)
  • Can cause serious shock

Tools and Equipment Needed

What You'll Need

Essential Tools:

  • Spark plug wrench or socket
  • Insulated pliers
  • Spark tester (recommended)
  • Insulated gloves
  • Safety glasses
  • Shop rag

Spark Tester Options:

  • Inline spark tester: $10-20 (best option)
  • Adjustable gap tester: $15-30 (professional)
  • Basic tester: $5-10 (works)
  • Worth the investment
  • Safer than visual method

Basic Spark Test Method

Visual Spark Check

Step-by-Step Procedure:

  • Step 1: Turn off fuel valve
  • Step 2: Remove spark plug
  • Step 3: Reconnect plug wire to plug
  • Step 4: Ground plug threads to engine
  • Step 5: Crank engine and observe
  • Step 6: Look for blue spark
  • Step 7: Note spark strength

What to Look For:

  • Good spark: Bright blue, consistent
  • Weak spark: Yellow/orange, intermittent
  • No spark: Nothing visible
  • Test in shaded area (easier to see)

Using a Spark Tester

Safer, More Accurate Method

Inline Tester Procedure:

  • Remove spark plug wire from plug
  • Connect tester between wire and plug
  • Ground tester to engine
  • Crank engine
  • Watch tester window for spark
  • Should see bright flash
  • More reliable than visual

Advantages:

  • Safer (no exposed plug)
  • Easier to see spark
  • Tests under load
  • More accurate
  • Professional method

Interpreting Results

What Spark Tells You

Good Spark Present:

  • Ignition system working
  • Problem likely fuel-related
  • Check carburetor/fuel system
  • Verify compression
  • Check valve timing

Weak Spark:

  • Worn spark plug
  • Weak ignition coil
  • Poor ground connection
  • Corroded connections
  • Failing CDI/ECU
  • Low battery voltage

No Spark:

  • Dead ignition coil
  • Failed CDI/ECU
  • Kill switch engaged
  • Broken wire
  • Bad stator/magneto
  • Faulty pickup coil

Advanced Spark Testing

Deeper Diagnostics

Testing Individual Components:

  • Ignition coil: Test primary/secondary resistance
  • CDI box: Check input/output signals
  • Stator: Test AC voltage output
  • Pickup coil: Measure resistance
  • Requires multimeter
  • Consult service manual for specs

Common Spark Problems

Troubleshooting

Intermittent Spark:

  • Loose connections
  • Corroded terminals
  • Failing coil (heat-related)
  • Damaged wiring
  • Bad kill switch
  • Check all connections

Spark Only When Cold:

  • Coil breaking down when hot
  • CDI heat failure
  • Replace failing component

Spark Only When Hot:

  • Condensation in connections
  • Thermal expansion fixing poor contact
  • Clean and tighten connections

Testing Multiple Cylinders

Multi-Cylinder Engines

Procedure:

  • Test each cylinder individually
  • Compare spark strength
  • All should be similar
  • Weak cylinder indicates problem
  • Check that cylinder's coil/wire

Common Mistakes to Avoid

Don't Do This

Errors:

  • Holding plug wire while cranking (shock hazard)
  • Not grounding plug properly
  • Testing near open fuel
  • Cranking too long (floods engine)
  • Not wearing safety equipment
  • Assuming new plug is good
  • Not checking kill switch first

After Testing

Next Steps

If Good Spark:

  • Problem is fuel or compression
  • Check fuel delivery
  • Clean carburetor
  • Test compression
  • Check valve timing

If No/Weak Spark:

  • Replace spark plug first (cheapest)
  • Check kill switch
  • Inspect wiring
  • Test ignition coil
  • Check CDI/ECU
  • Test stator if needed

Spark Plug Reading

What Plugs Tell You

Normal Plug:

  • Light tan/gray color
  • Minimal deposits
  • Engine running properly

Carbon Fouled (Black):

  • Running too rich
  • Weak spark
  • Too much oil (2-stroke)

Oil Fouled (Wet):

  • Oil entering combustion chamber
  • Worn rings/valve seals

Overheated (White):

  • Running too lean
  • Wrong heat range
  • Timing too advanced

Preventive Maintenance

Avoid Spark Problems

Regular Maintenance:

  • Replace spark plugs on schedule
  • Keep connections clean
  • Use dielectric grease
  • Inspect wires regularly
  • Check gap periodically
  • Store properly

When to Seek Professional Help

Know Your Limits

Get Professional Help If:

  • Uncomfortable with electrical work
  • Can't identify problem
  • Need specialized testing equipment
  • Suspect complex electrical issue
  • Warranty considerations
  • Safety concerns

Conclusion

Essential Diagnostic Skill

Testing for spark is a fundamental diagnostic skill that every powersports owner should know. It's quick, easy, and immediately tells you whether your no-start problem is ignition-related or fuel/compression-related. By following this guide and using proper safety precautions, you can confidently diagnose ignition problems and avoid replacing parts unnecessarily.

Remember: always test for spark before assuming you need expensive parts. A simple spark test can save you hundreds of dollars and hours of frustration. Master this basic skill, and you'll be able to troubleshoot most starting problems quickly and effectively!
