How does a Motor Scooter Handlebar Brake Master Cylinder Work?

Understand how a hydraulic handlebar brake works

Motor scooters have become increasingly popular as a convenient and efficient mode of transportation, especially in busy urban areas. When riding a scooter, safety is of utmost importance, and a key component that ensures safe operation is the handlebar brake master cylinder. In this comprehensive guide, we will explore in detail how the handlebar brake master cylinder works, providing riders with a deeper understanding of this critical part.

The Role of the Handlebar Brake Master Cylinder

The handlebar brake master cylinder serves as the command center for the scooter's braking system. Its primary function is to convert the mechanical force applied by the rider on the brake lever into hydraulic pressure, which is then transmitted to the brake calipers.

Components of the Handlebar Brake Master Cylinder

Understanding the various components of the handlebar brake master cylinder is essential to comprehend its functioning:

• Reservoir: The reservoir holds the brake fluid, which is vital for the braking system to operate effectively. It ensures a steady supply of fluid to the master cylinder.
• Piston: The piston is the primary moving component inside the master cylinder. When the rider applies force to the brake lever, it pushes the piston forward, generating hydraulic pressure.
• Seals: Seals are crucial in preventing any leakage of hydraulic pressure within the master cylinder. They ensure the system remains pressurized and functional.
• Brake Fluid: Brake fluid is a specialized hydraulic fluid that plays a vital role in transmitting force from the master cylinder to the brake calipers. It is important to regularly check and maintain the brake fluid level.
• Brake Lines: Brake lines connect the master cylinder to the brake calipers. They allow the hydraulic pressure generated by the master cylinder to be transmitted effectively.
• Brake Calipers: Brake calipers are located near the wheels and house the brake pads. They receive the hydraulic pressure from the master cylinder and convert it into mechanical force to stop the scooter.
• Brake Pads: Brake pads are positioned within the brake calipers and make direct contact with the brake discs. They create friction, which is essential for slowing down and stopping the scooter.

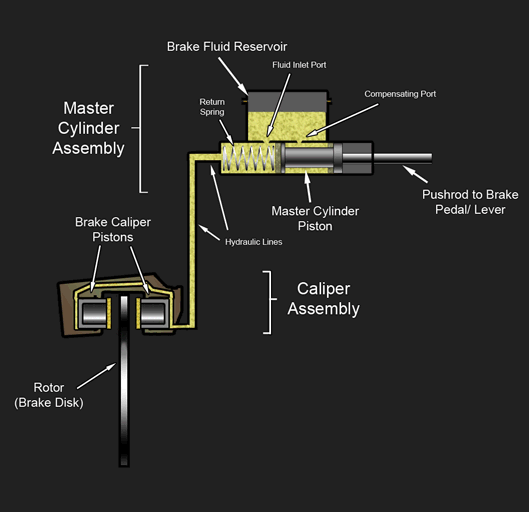

How the Handlebar Brake Master Cylinder Works

When the rider squeezes the brake lever on the handlebar, it triggers the activation of the handlebar brake master cylinder. The force applied to the lever is transmitted to the piston inside the master cylinder, causing it to move forward.

As the piston moves forward, it compresses the brake fluid in the reservoir, generating hydraulic pressure. This hydraulic pressure is then directed through the brake lines to the brake calipers.

Upon receiving the hydraulic pressure, the brake calipers squeeze the brake pads against the brake discs. The resulting friction between the pads and discs slows down the rotation of the wheels, eventually bringing the scooter to a stop.

Maintaining the Handlebar Brake Master Cylinder

To ensure optimal performance and safety, it is important to maintain the handlebar brake master cylinder:

• Regular Inspections: Periodically check the brake fluid level in the reservoir and top it up if necessary. Additionally, inspect the brake lines for any signs of wear, damage, or leakage. Finally, examine the brake calipers and pads to ensure they are in good condition.
• Brake Fluid Replacement: Over time, brake fluid can become contaminated or lose its effectiveness. It is recommended to replace the brake fluid according to the manufacturer's guidelines.
• Professional Servicing: If you are unsure about the condition of the handlebar brake master cylinder or lack the necessary expertise, it is advisable to seek professional servicing to ensure proper maintenance and adjustment.

Conclusion

The handlebar brake master cylinder is a critical component of a motor scooter's braking system. Understanding its operation and importance allows riders to appreciate the technology behind their scooters and emphasizes the significance of regular maintenance and inspection. By keeping the handlebar brake master cylinder in optimal condition, scooter riders can enjoy safe and reliable braking performance, enhancing their overall riding experience.
